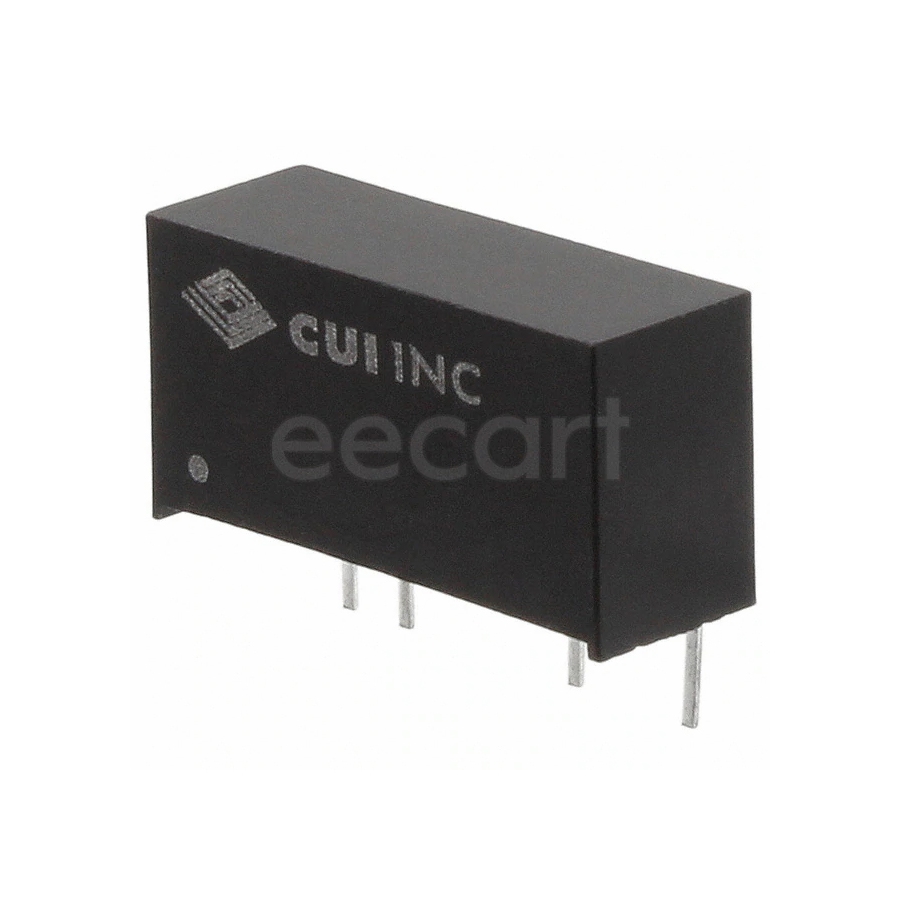

PEM2-S24-S24-S
Manufacturer:
Same Sky
Mfr.Part #:
PEM2-S24-S24-S
Datasheet:
Description:
DC to DC Converters SIP-7 Module, 4 Leads Through Hole Nominal Input Voltage:21.6 V to 26.4 V Min Input Voltage:21.6 V Max Input Voltage:26.4 V 85 %
| Parameter | Value |
|---|---|
| Length | 19.65 mm |
| Width | 7.05 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 10.16 mm |
| Packaging | Tube |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Weight | 2.4 g |
| Features | SCP |
| Min Input Voltage | 21.6 V |
| Output Voltage | 24 V |
| Max Power Dissipation | 2 W |
| Max Output Current | 83.3 mA |
| Max Input Voltage | 26.4 V |
| Number of Outputs | 1 |
| Isolation Voltage | 3 kV |
| Output Power | 2 W |
| Current - Output 1 | 83.3 mA |
| Efficiency | 85 % |
| Voltage - Output 1 | 24 V |
| Nominal Input Voltage | 21.6 V to 26.4 V |
| Isolation | Isolated |
| Output Current-Channel 1 | 83.3 mA |
| Output Voltage-Channel 1 | 24 V |
